Configure The Look

The "View" menu has some interesting functions. First you can hide the measuring points, depending on if they are already measured or not, that can be useful to orientate in the floor plan. Do this by unselecting "View" $\rightarrow$ "Measured Points" or "View" $\rightarrow$ "Unmeasured Points". Select those menu entries again to make the corresponding points visible. The same applies to the menu entry "Stations".

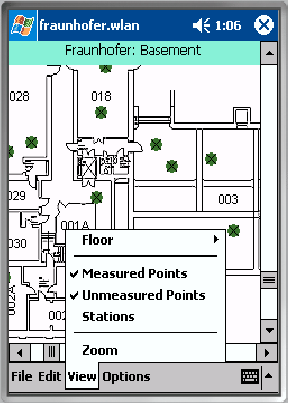

Figure 3.1: The MobileWLANAssistant with the "View" menu opened

By the "Floor" submenu you can choose the floor that shall be shown in the main screen. If the floor plan seems to be too big or too small, you can change that with "View" $\rightarrow$ "Zoom". If you click there, a dialog opens, where you may choose (in the upper field) or enter (into the input box below) a zoom factor. Just pick a good one.
