Adding A Floor

If you have created or opened a building, you now are able to add floors to the building. You now need the images of the floor maps in an appropriate format, i.e. BMP or JPEG.

Go to the menu entry "Building" $\rightarrow$ "Add Floor" and the "Add Floor" dialog will open (2.2). In the upper field you can indicate a unique name for the floor and give the floor an altitude in meters. This altitude should conform to the relations in the real building. In the lower field of the dialog you may select a graphics file, that means a map, that represents the floor. Select the right one and close the dialog with "Finish".

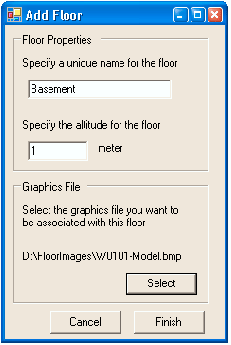

Figure 2.2: The "Add Floor" Dialog

If all went right you should now see the floor map in the main screen and some additional information in the property grid at the right. The menu "View" $\rightarrow$ "Change Groundplan ..." allows you to change the image of the floor plan later.

Feel free to add additional floors to your building. With "View" $\rightarrow$ "Floors" you can select the floor to be shown in the main screen. With the magnifying glasses in the tool bar you can zoom in and out of the map. Predefined values of the scale can be reached in the "View" $\rightarrow$ "Scale" menu.
