Adding Measuring Points and Stations

For an analysis of the WLAN-network measurements need to be done. It is easy to mark the points where you want to measure. One way is to choose "Edit" $\rightarrow$ "Add Point" an then click on the floor surface to place the point. This is quite difficult if you want to place many measuring points. For this purpose the pen button in the tool bar is used. Click it to get into draw mode, you can now place a measuring point with every click on the surface of the floor. For most interpolation algorithms there are also stations (WLAN access points) needed. You should place them in the main screen according to their placement in reality. Use the menu point "Building" $\rightarrow$ "Add Station" or the blue point in the tool bar for this purpose.

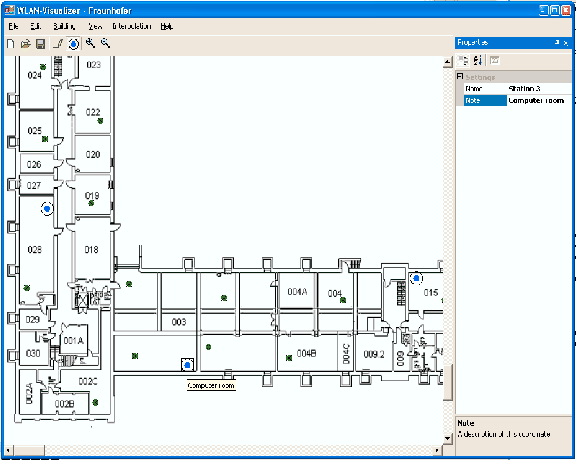

Figure 2.3: A sample floor plan with measuring points
